Spesifikasi Mesin Las MIG R-231 Vector

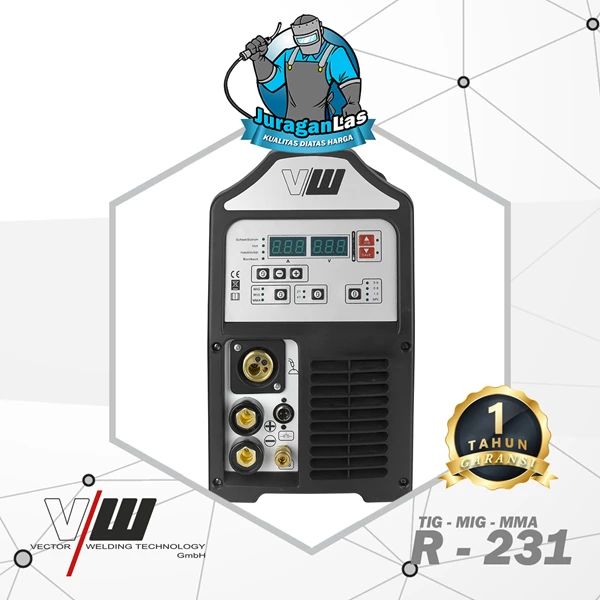

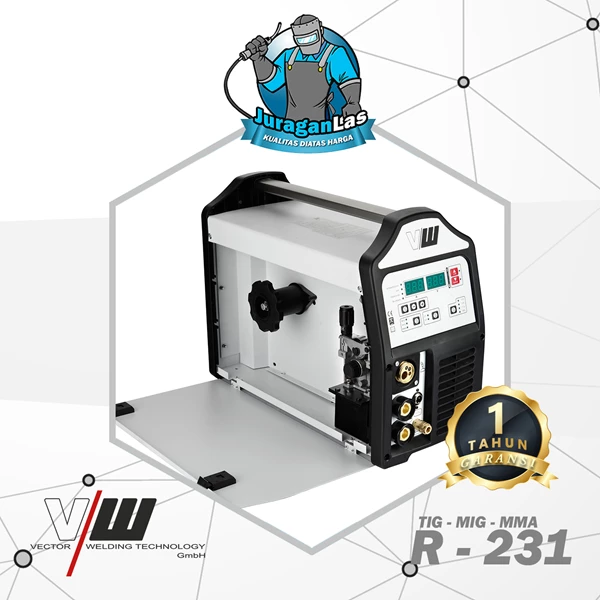

Mesin Las Stahlwerk ( Vector Digital ) Mig R-231

Rated voltage AC 220 V

Input frequency 50/60 Hz

Input Current max. 16 A

Output Current MIG 30-200 A

Output Current TIG 0-200 A

Duty cycle at 200 A 60%

Duty cycle at 140 A 100%

Gas-/ air flow MIG 10-15 l/min

Gas-/ air flow TIG 2-5 l/min

Display of output current 10 ~ 200 A

Protection 16 A

Insulation grace F

Housing shielding grace IP21

Weld Intensity 0,8 bis 10 mm

– Perlengkapan yang didapat dalam kemasan :

The combo device MIG MAG 200 TIG MMA.

MIG-MAG accessory.

Ground wire 3 m.

Prof TIG tube package “P-26” 4,5 m.

Electrode holder 3 m.

Connection hose 3 m.
