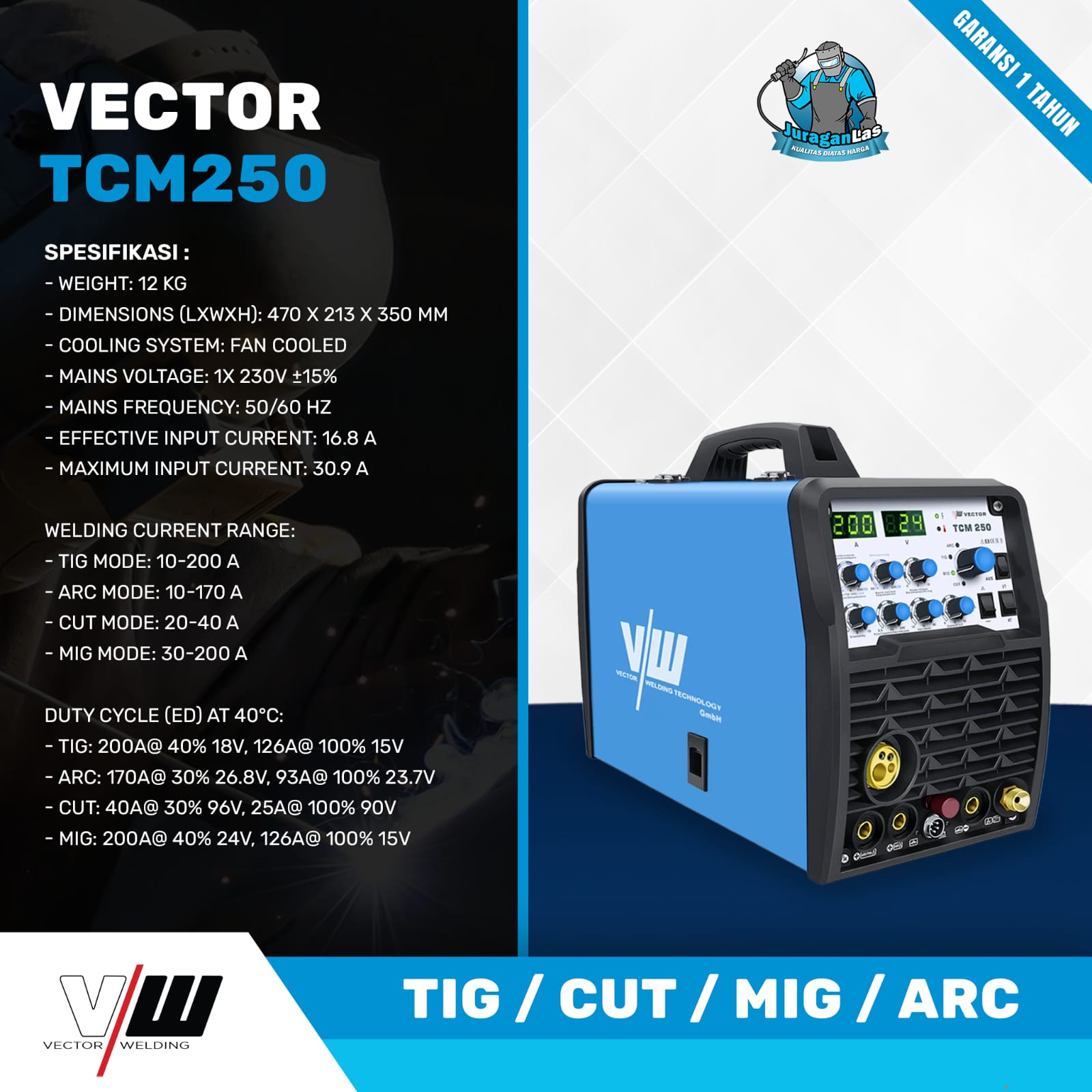

Weight: 12 kg
Dimensions (LxWxH): 470 x 213 x 350 mm
Cooling System: Fan cooled
Welding Machine Type: Power source based on inverter principle
European Standards: EN 60974-1 / IEC 60974-1
Mains Voltage: 1x 230V ±15%
Mains Frequency: 50/60 Hz

Welding Current Range:
– TIG Mode: 10-200 A
– ARC Mode: 10-170 A
– CUT Mode: 20-40 A
– MIG Mode: 30-200 A

Effective Input Current: 16.8 A
Maximum Input Current: 30.9 A
Required Design of Single-phase Generator: 10 KVA

Duty Cycle (ED) at 40°C:
– TIG: 200A@ 40% 18V, 126A@ 100% 15V
– ARC: 170A@ 30% 26.8V, 93A@ 100% 23.7V
– CUT: 40A@ 30% 96V, 25A@ 100% 90V
– MIG: 200A@ 40% 24V, 126A@ 100% 15V

Open-Circuit Voltage (TIG/ARC/CUT/MIG): 60V / 60V / 330V / 60V
Degree of Protection: IP23
Insulation Class: H
