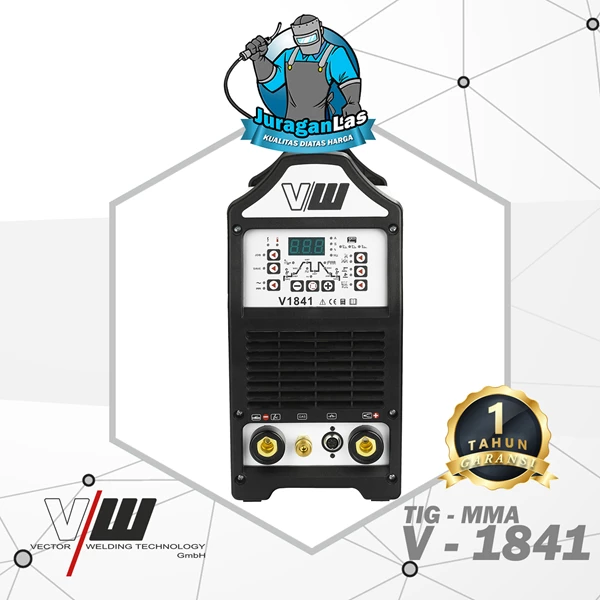

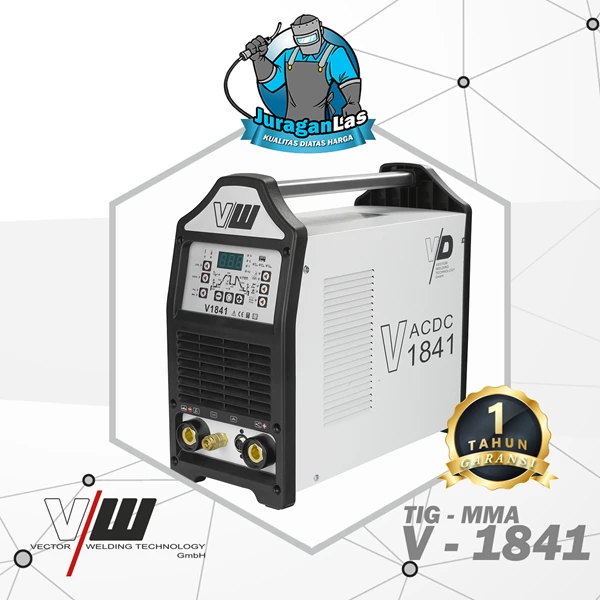

Spesifikasi V-1841 Vector AC/DC TIG Pulse + MMA Welding Machine 180A
Deskripsi Produk mesin las Vector V-1841 :

* Technische Daten ( techical data ) :

Power Source Dimensions : H395mmxW180mmxD375mm

Cooling : Fan Cooled

Welder Type : Inverter Power Source

European Standards : EN 60974-1 / IEC 60974-1

Number of Phases : 1

Nominal Supply Voltage : 220V +/- 15%

Nominal Supply Frequency : 50/60Hz

Welding Current Range (DC STICK Mode) : 10 – 170A

Welding Current Range (DC TIG Mode) : 10 – 180A

Effective Input Current /STICK /TIG : 21.5A/14.8A

Maximum Input Current/STICK/ TIG : 30.4A/20.9A

Single Phase Generator Requirement : 7.5KVA

STICK (MMA) Welding Output, 40oC, 10 min. : 170A @ 35%, 26.8V / 100A @ 100%, 24V

TIG (GTAW) Welding Output, 40oC, 10 min. : 180A @ 35%, 17.2V / 107A @ 100%, 14.3V

Open circuit voltage : 70.0-80.0V DC

Protection Class : IP23S
