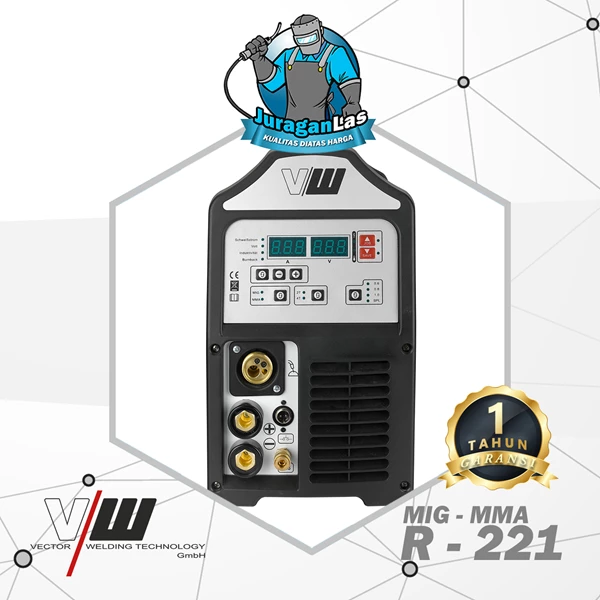

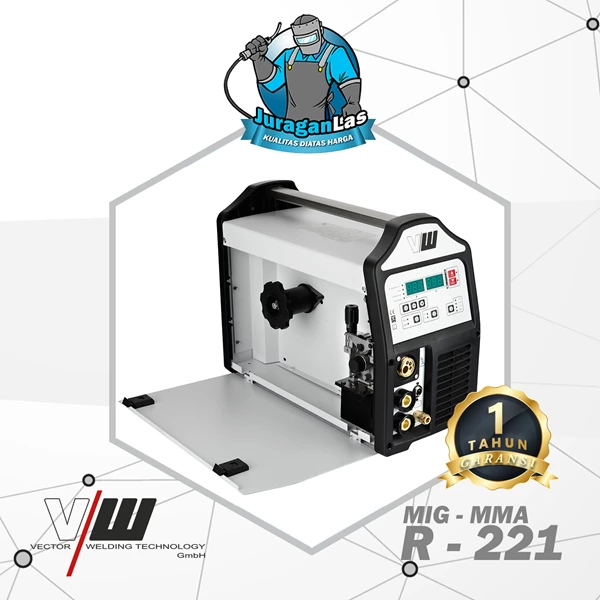

Spesifikasi Mesin Las MIG R-221 Vector
Deskripsi Produk mesin las MIG Vector R-221

– Spesifikasi mesin :

Power Source Dimensions : H490mmxW225mmxD380mm

Cooling : Fan Cooled

Welder Type : Multi Process Inverter Power Source

European Standards : EN 60974-1 / IEC 60974-1

Number of Phases : 1

Nominal Supply Voltage : 220V +/- 15%

Nominal Supply Frequency : 50/60Hz

Welding Current Range ( STICK Mode) : 5 – 170A

Welding Current Range ( MIG Mode) : 5 – 200A

Effective Input Current /STICK /MIG : 22.6A

Maximum Input Current/STICK/ MIG : 35.7A

Single Phase Generator Requirement : 12.3KVA

STICK (SMAW) Welding Output, 40oC, 10 min. :170A @ 40%, 26.8V

107A @ 100%, 24.2V

132A @ 60%, 25.3V

MIG (GMAW) Welding Output, 40oC, 10 min. : 200A @ 40%, 24V

155A @ 60%, 21.8V

126A @ 100%, 20.3V

Open circuit voltage : 70.0-80.0V DC

Protection Class : IP23S

– Yang didapat dalam kemasan :

The combo device 200A MIG/MAG+ MMA.

MIG-MAG accessory.

Ground wire 3 m.

Electrode holder 3 m.

Connection hose 3 m.

User guide in english.
