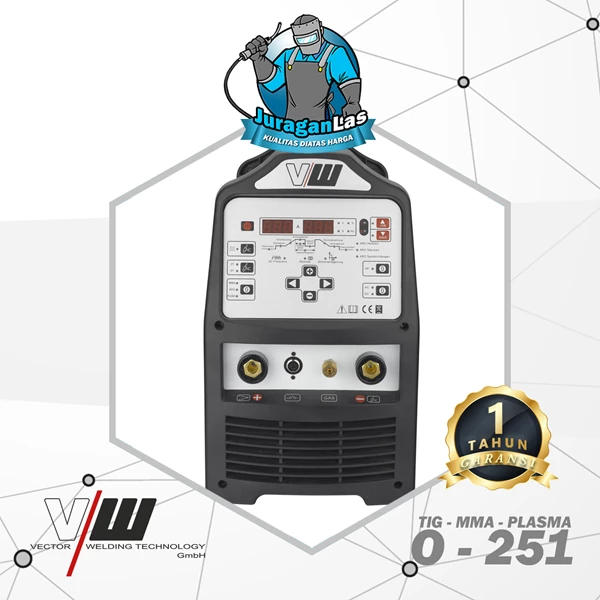

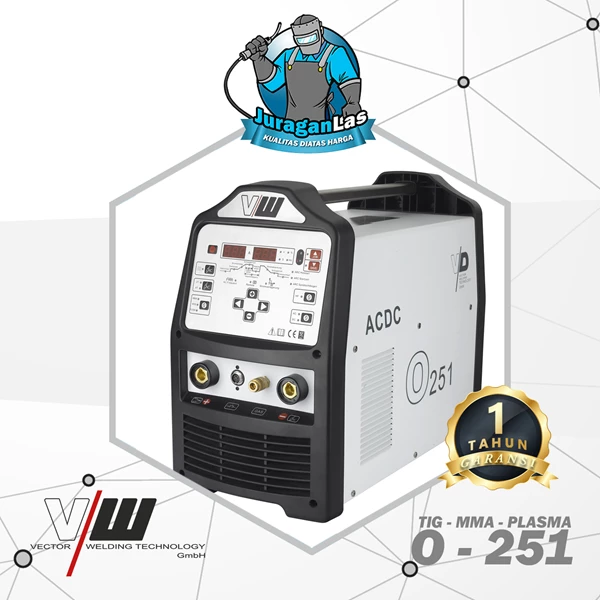

Spesifikasi Mesin Las Listrik O-251 Vector AC/DC TIG Pulse + MMA + Plasma Cutting Machine

Deskripsi Produk mesin las Vector O-251 :

Technische Daten ( techical data ) :

Power Source Dimensions : L540mmxW270mmxH450mm

Cooling : Fan Cooled

Welder Type : Inverter Power Source

European Standards : EN 60974-1 / IEC 60974-1

Number of Phases : 1

Nominal Supply Voltage : 220V +/- 15%

Nominal Supply Frequency : 50/60Hz

Welding Current Range ( STICK Mode) : 10 – 200A

Welding Current Range ( TIG Mode) : 10 – 200A

Welding Current Range (CUT Mode) : 10 – 50A

Effective Input Current /STICK /TIG : 20.8A

Maximum Input Current/STICK/ TIG : 41.6A

Single Phase Generator Requirement : 12.1KVA

STICK (MMA) Welding Output, 40oC, 10 min. : 200A @ 25%, 28V

141A @ 50%, 25.6V

110A @ 100%, 24.4V

TIG (GTAW) Welding Output, 40oC, 10 min. : 200A @ 25%, 18V

141A @ 50%, 15.6V

110A @ 100%, 14.4V

Cutting Output, 40oC, 10 min. : 50A @ 60%, 96V

31A @ 100%, 92.4V

Open circuit voltage : 70.0-80.0V DC

Protection Class : IP23S
