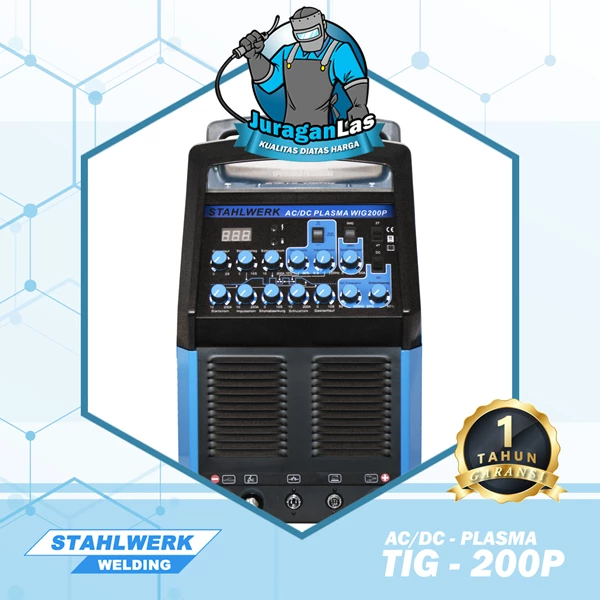

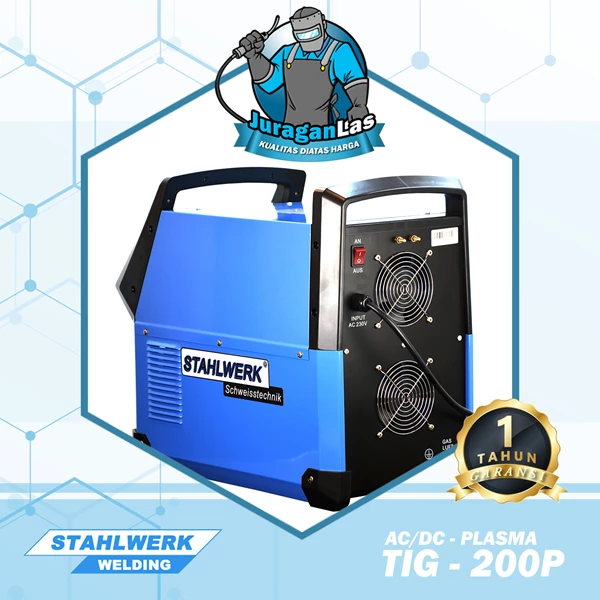

Spesifikasi Mesin Las TIG-200P AC/DC + Plasma AC/DC Pulse Stahlwerk
Deskripsi Produk mesin las Stahlwerk TIG-200P AC/DC Plasma :

Technische Daten ( techical data ) :

Rated voltage : AC 220 V 10%

Input frequency : 50/60 Hz

Input current : 20 A

Power capacity : 4,5 KVA

Output current : 200 A

Display of output current : TIG and MMA 0 – 200 A

Plasma Cut 0 – 50 A

Working voltage : 18 V

Forerun : 0-2 Sekunden

AC Output frequency : 60Hz

Gas preliminary time : 0 – 2 Sekunden

Gas post flow time : 0-10 Sekunden

Slow current reduction : 0-10 Sekunden

Current shift : 10-90%

Arc deflection TIG : HF – Ignition

Load collective TIG : 60 % at 200 A

Remote control : Yes: foot pedal ( optional )

Overcurrent protection : 16 A

Efficiency : 85%

Output factor : 0.93

IIsolation Class : B

Safety class : IP21

Dimensions : 493 x 330 x 320 mm

Weld Intensity : 10 mm

Cutting power : 12 mm ( max. for mild steel )
